Overview

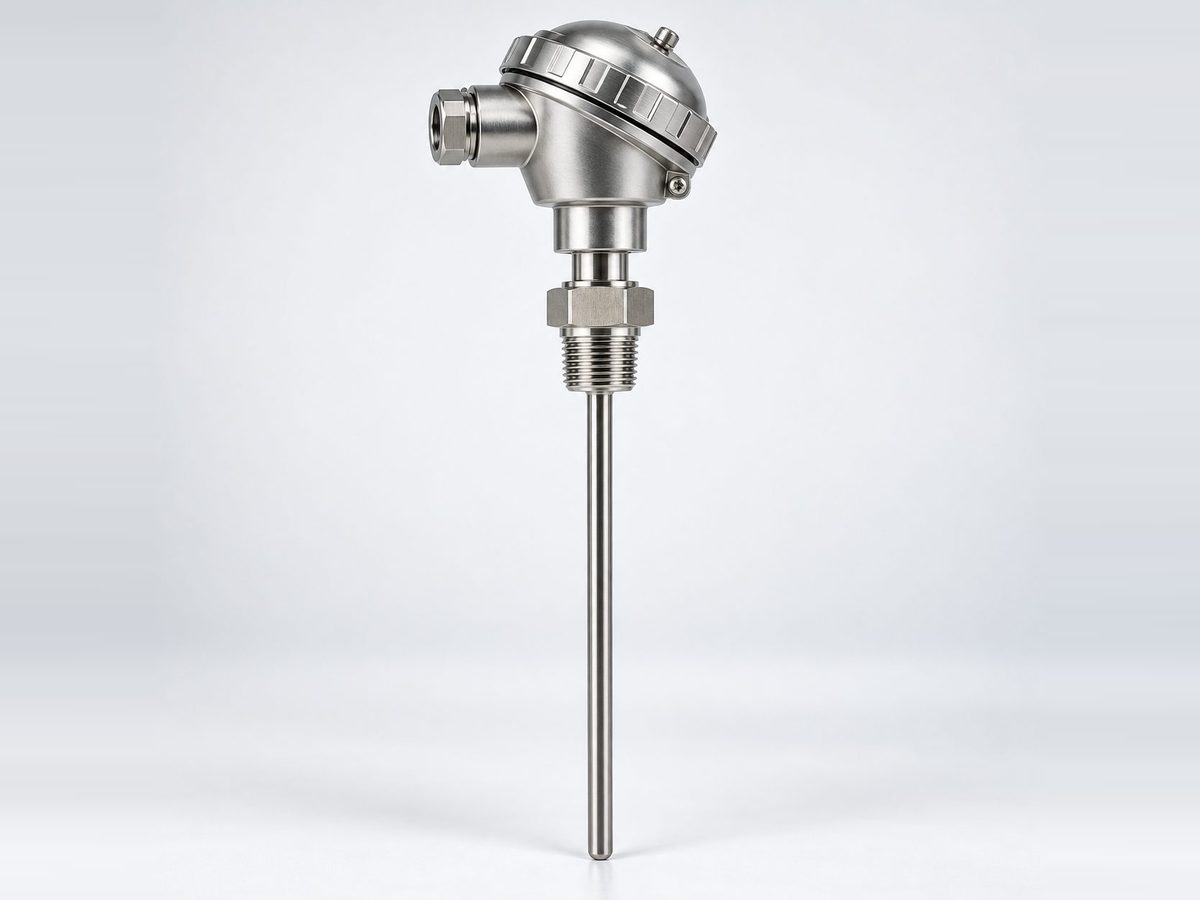

A threaded head temperature probe with a 6 inch stainless steel sheath.
This temperature probe is designed for general purpose and process applications. You can fit it into a thermowell or tee and wire it to your controller. The 6 inch stainless steel sheath suits most pipe sizes.
When choosing, consider the measuring range of -58 to 392 F (-50 to 200 C) and the Pt100 RTD 3 wire output signal. The probe has a 1/2 inch NPT connection and an IP65 protection rating. It offers Class B accuracy and weighs 0.3 lb (0.14 kg).
Specifications
Detailed specifications for the Temperature probe.
- Material
- Stainless steel
- Application
- General purpose, Process
- Accuracy
- Class B
- Connection size
- 1/2 inch NPT
- Protection rating
- IP65
- Weight
- 0.3 lb (0.14 kg)
- Measuring range
- -58 to 392 F (-50 to 200 C)
- Output signal
- Pt100 RTD, 3 wire
- Probe length
- 6 inch (150 mm)
Downloads
No downloads are listed for this instrument yet. Every specification is in the Specifications tab.
Compatibility
Process connection: 1/2 inch NPT.
Shipping and returns
This store runs in test mode: no payment is taken and no order is shipped.
Temperature probe at a glance.
A threaded head temperature probe with a 6 inch stainless steel sheath.
Key features
- Material: Stainless steel
- Application: Process
- Accuracy: Class B
- Connection size: 1/2 inch NPT
- Protection rating: IP65
