Overview

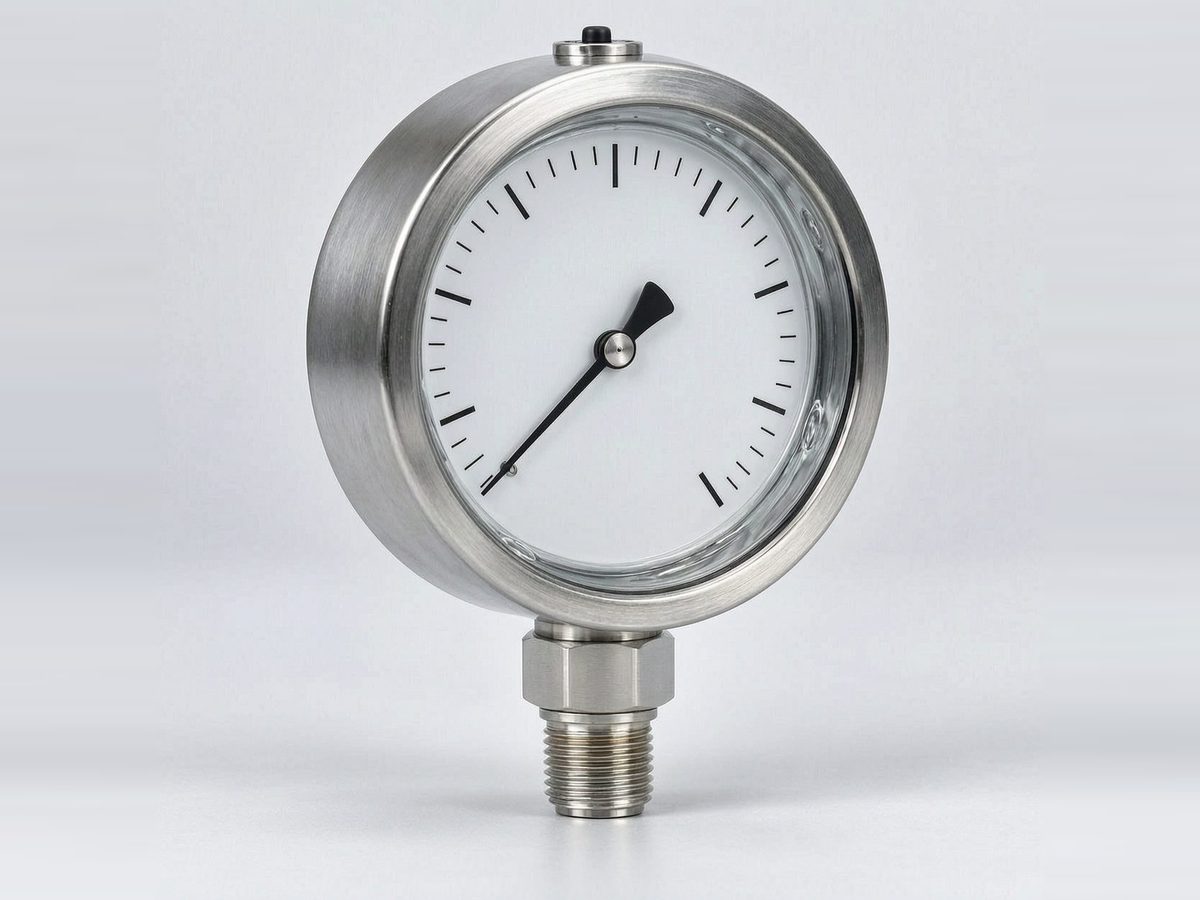

A liquid filled 2.5 inch dial gauge with a stainless steel case for steady readings on working lines.
Series P200 is the reference gauge in the range. The glycerin fill damps the pointer so you get a readable dial on pumps and compressors, and the 1/4 inch NPT bottom connection fits most process tees.
Specifications
Detailed specifications for the Series P200 liquid-filled pressure gauge.
The assistant’s example answer above cites the rows marked checked by AI.
- Pressure rangeChecked by AI
- 0-100 psi
- Dial size
- 2.5 inch
- Connection type
- Bottom mount
- Fill typeChecked by AI
- Glycerin filled
- MaterialChecked by AI
- Stainless steel
- Output type
- Analog (dial)
- Application
- General purpose, Process
- Accuracy
- +/-1.0% of full scale
- Connection size
- 1/4 inch NPT
- Pointer
- Black aluminum
- Operating temperature
- -4 to 158 F (-20 to 70 C)
- Window
- Glass
- Vibration resistance
- Filled for improved vibration damping
- Protection rating
- IP65
- Weight
- 0.4 lb (0.18 kg)
Downloads
No downloads are listed for this instrument yet. Every specification is in the Specifications tab.
Compatibility

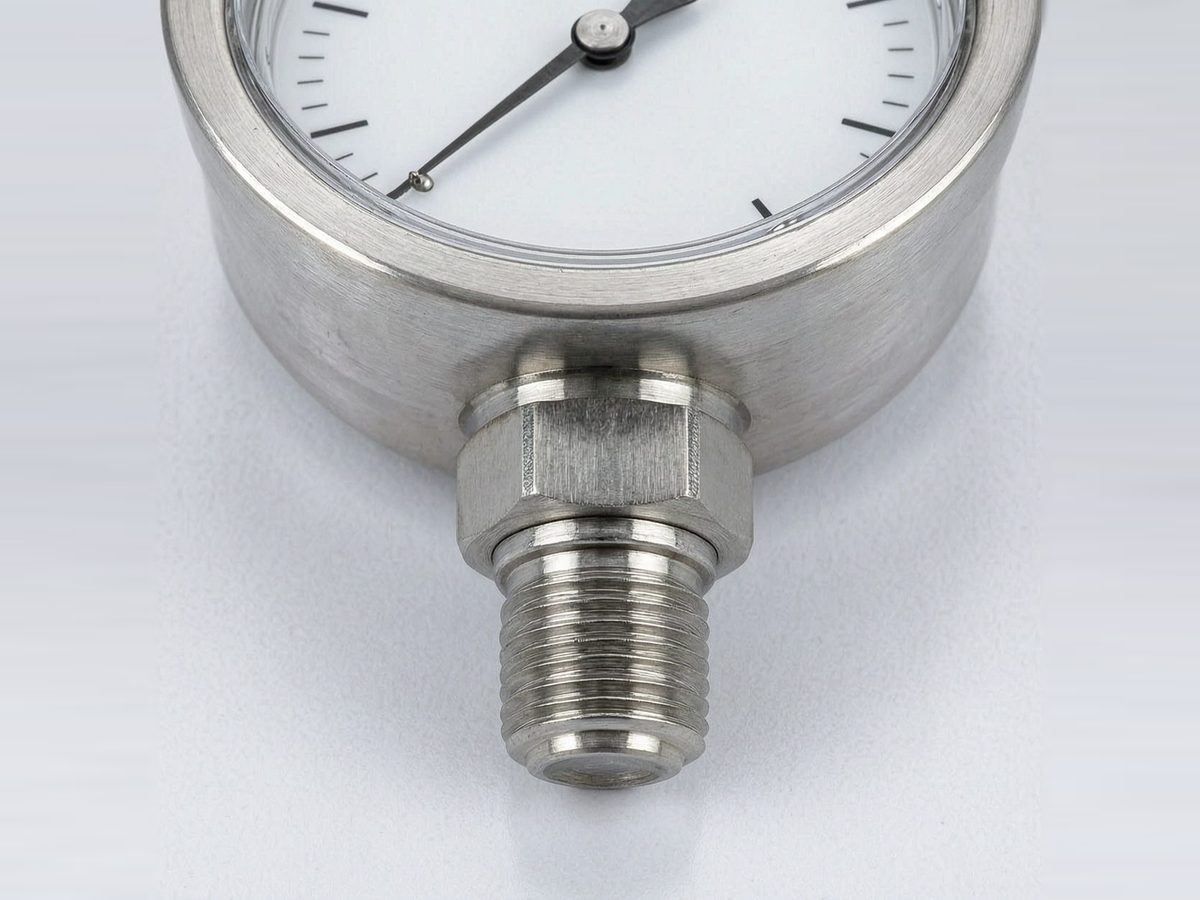

Process connection: 1/4 inch NPT, bottom mount.
Also in this catalogue with a 1/4 inch NPT connection: Pressure transmitter, Gauge snubber, Diaphragm seal.
Shipping and returns
This store runs in test mode: no payment is taken and no order is shipped.
Built for demanding environments.

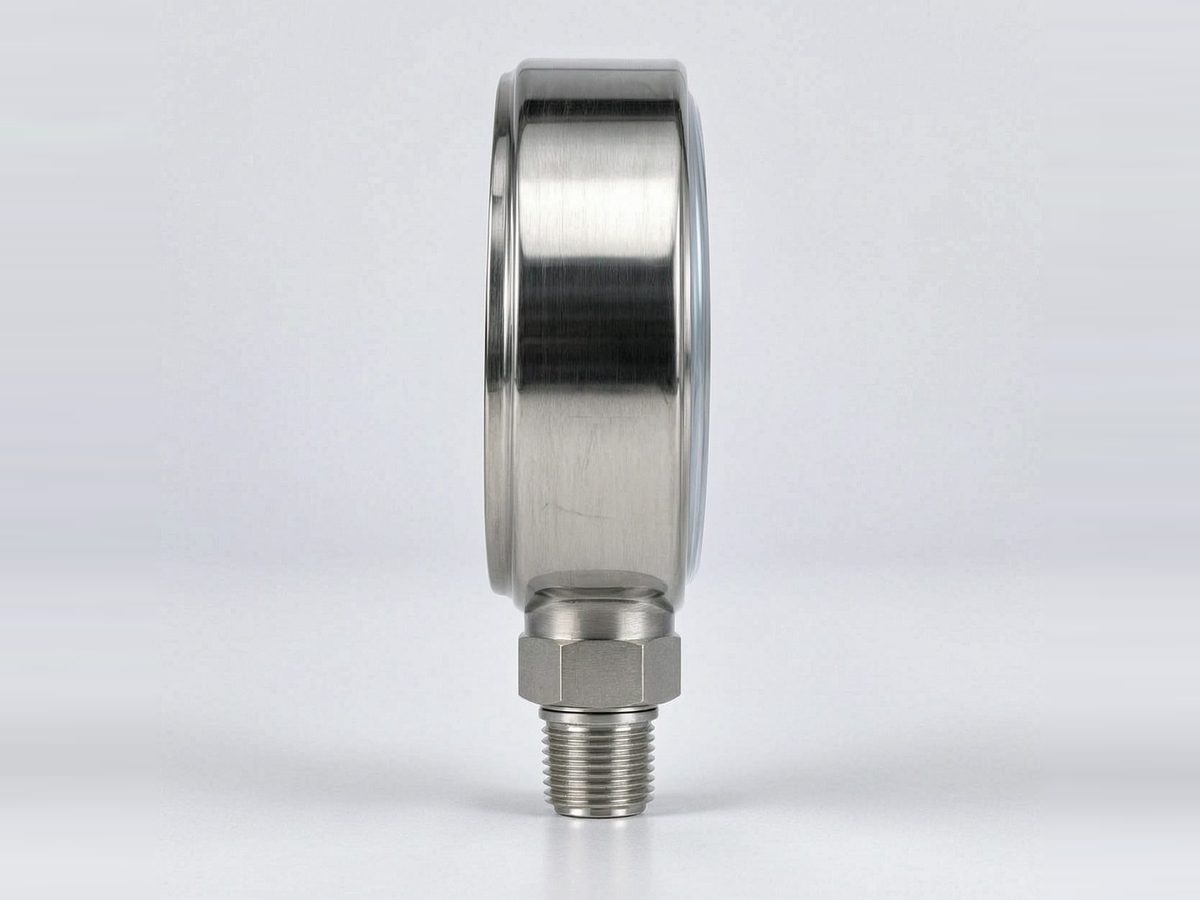

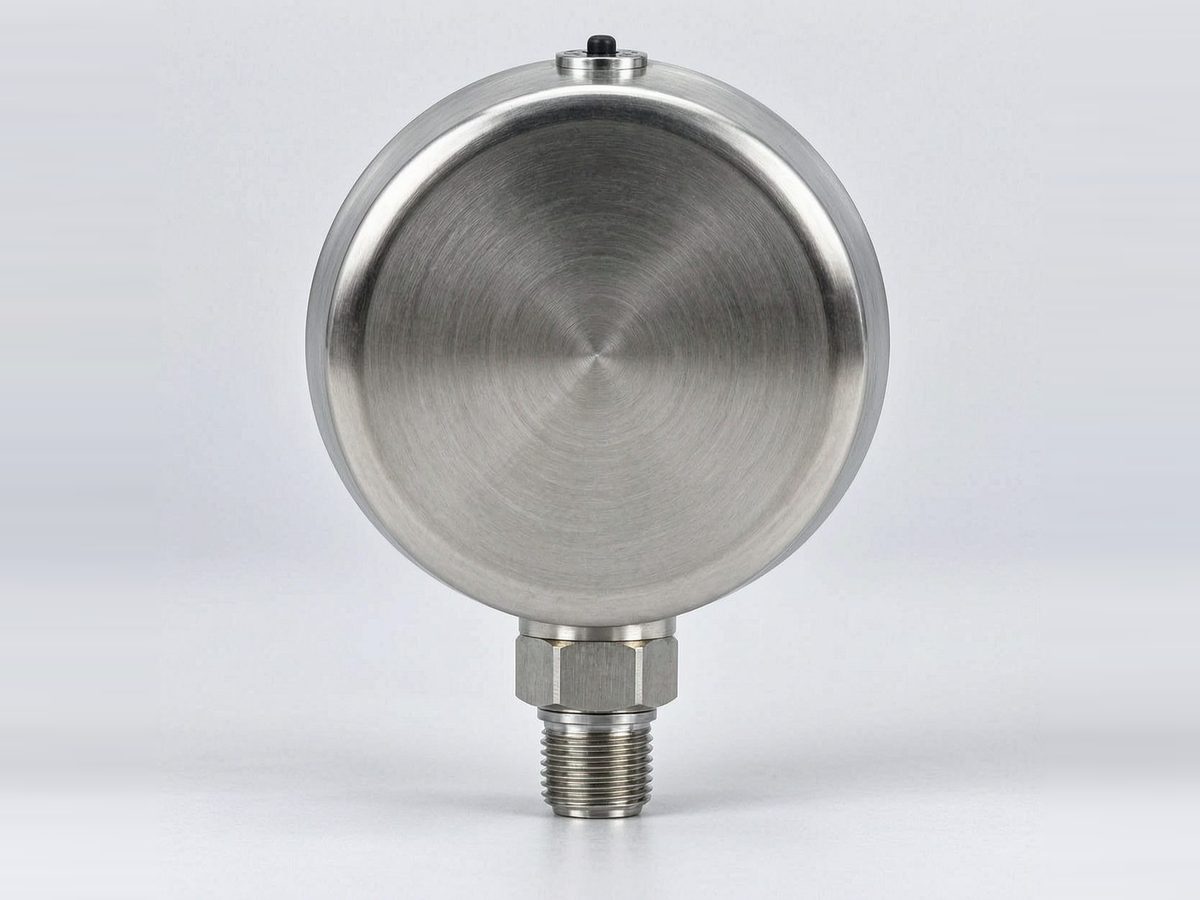

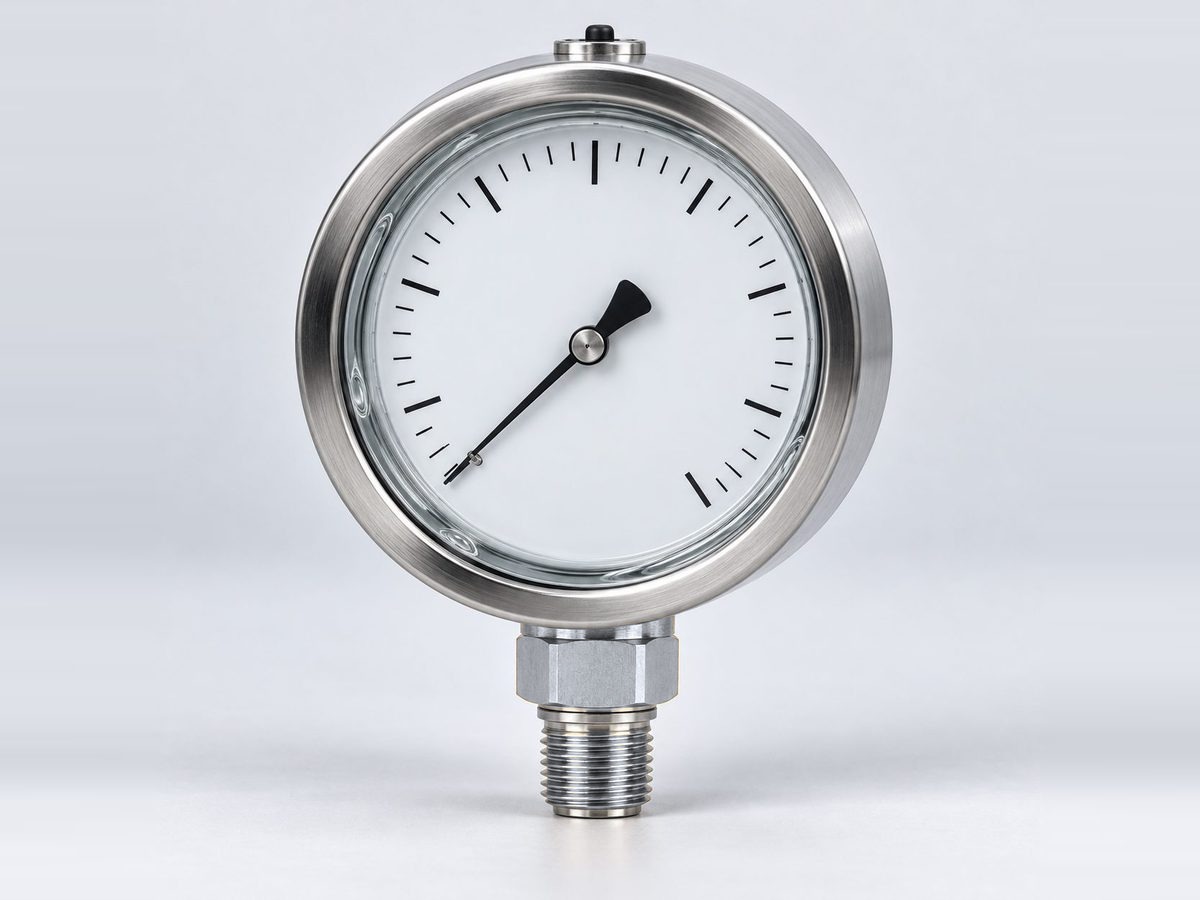

The Series P200 is a liquid-filled pressure gauge for industrial process lines. The case is filled with glycerin to damp pointer vibration, and the case and wetted parts are stainless steel.
Key features
- Liquid-filled for vibration resistance
- Stainless steel case and wetted parts
- Glass window
- Bottom mount connection
- Analog dial for at-a-glance readings
