Overview

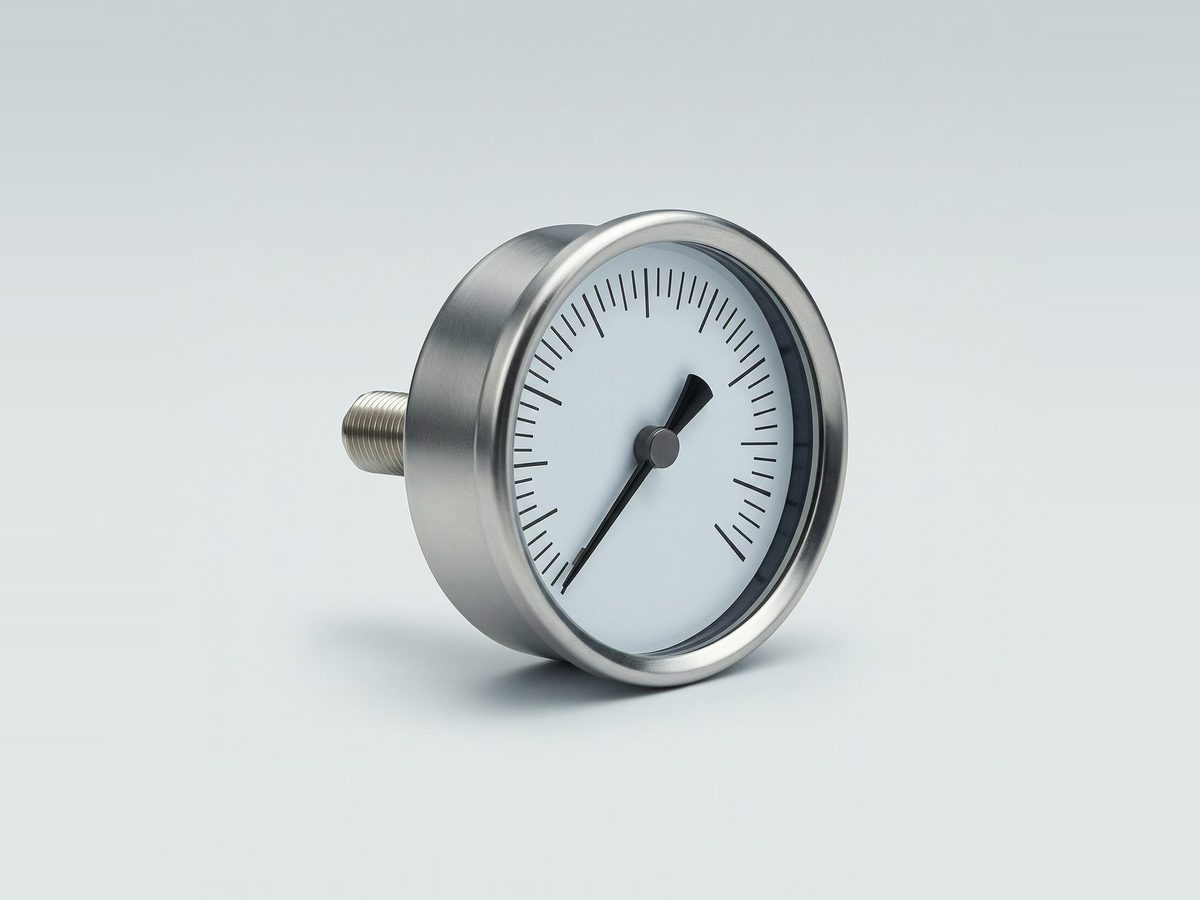

The same glycerin filled gauge with a back connection.
Series P250 matches the P200 specs with a center back connection, so you can mount it flat against a manifold or wall.
Specifications
Detailed specifications for the Series P250.
- Pressure range
- 0-100 psi
- Dial size
- 2.5 inch
- Connection type
- Back mount, Bottom mount
- Fill type
- Glycerin filled
- Material
- Stainless steel
- Output type
- Analog (dial)
- Application
- General purpose, Process
- Accuracy
- +/-1.0% of full scale
- Connection size
- 1/4 inch NPT
- Pointer
- Black aluminum
- Operating temperature
- -4 to 158 F (-20 to 70 C)
- Window
- Glass
- Vibration resistance
- Filled for improved vibration damping
- Protection rating
- IP65
- Weight
- 0.4 lb (0.18 kg)
Downloads
No downloads are listed for this instrument yet. Every specification is in the Specifications tab.
Compatibility
Process connection: 1/4 inch NPT, back mount.
Also in this catalogue with a 1/4 inch NPT connection: Pressure transmitter, Gauge snubber, Diaphragm seal.
Shipping and returns
This store runs in test mode: no payment is taken and no order is shipped.
Series P250 at a glance.
The same glycerin filled gauge with a back connection.
Key features
- Pressure range: 0-100 psi
- Dial size: 2.5 inch
- Connection type: Back mount
- Fill type: Glycerin filled
- Material: Stainless steel
