Overview

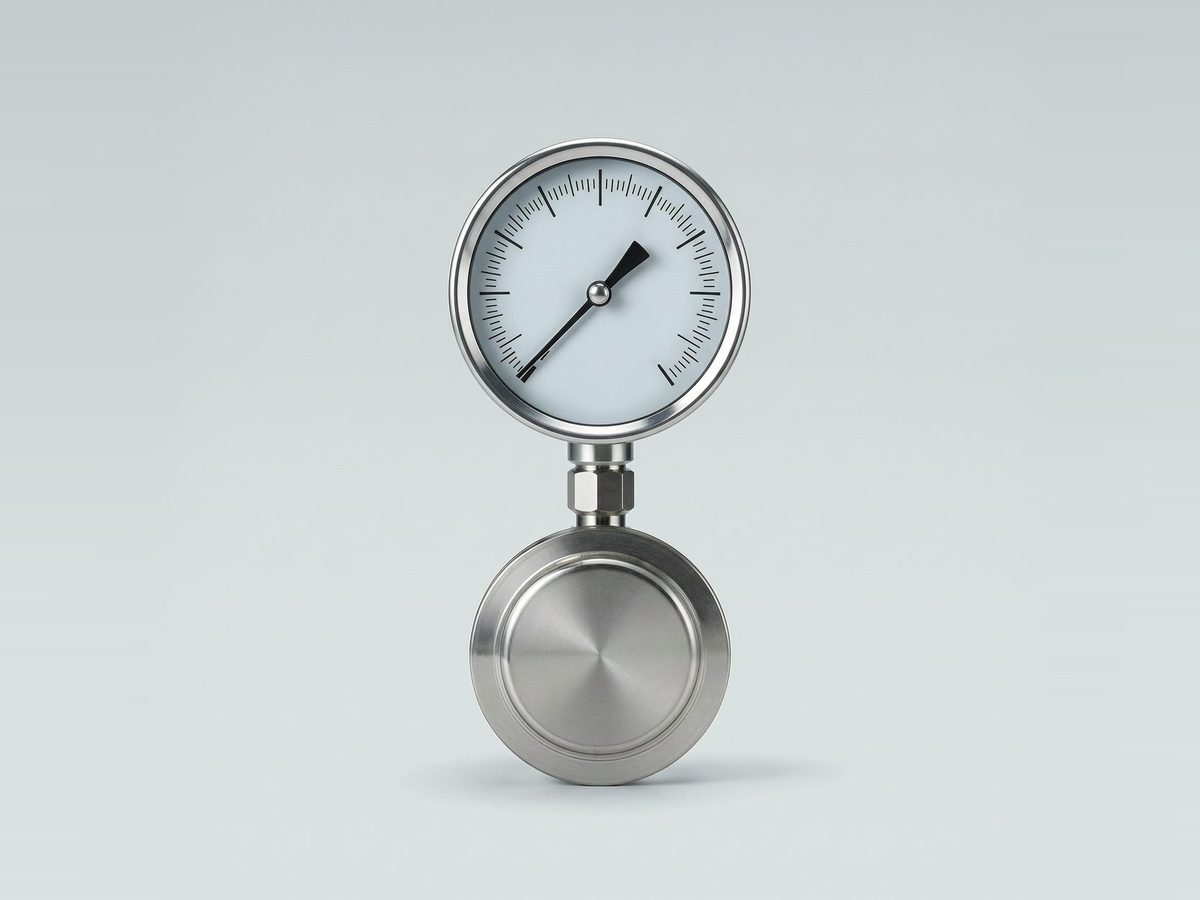

A diaphragm sealed gauge with a sanitary clamp connection for clean processes.
Series P450 has a flush diaphragm and clamp fitting, so you can take it off for cleaning without tools.
Specifications
Detailed specifications for the Series P450.
- Pressure range
- 0-100 psi
- Dial size
- 2.5 inch
- Connection type
- Sanitary clamp
- Fill type
- Glycerin filled
- Material
- Stainless steel
- Output type
- Analog (dial)
- Application
- Sanitary
- Accuracy
- +/-1.0% of full scale
- Connection size
- 1.5 inch sanitary clamp
- Pointer
- Black aluminum
- Operating temperature
- -4 to 158 F (-20 to 70 C)
- Window
- Glass
- Vibration resistance
- Filled for improved vibration damping
- Protection rating
- IP65
- Weight
- 0.9 lb (0.41 kg)
Downloads
No downloads are listed for this instrument yet. Every specification is in the Specifications tab.
Compatibility
Process connection: 1.5 inch sanitary clamp, sanitary clamp.
Shipping and returns
This store runs in test mode: no payment is taken and no order is shipped.
Series P450 at a glance.
A diaphragm sealed gauge with a sanitary clamp connection for clean processes.
Key features
- Pressure range: 0-100 psi
- Dial size: 2.5 inch
- Connection type: Sanitary clamp
- Fill type: Glycerin filled
- Material: Stainless steel
